Description

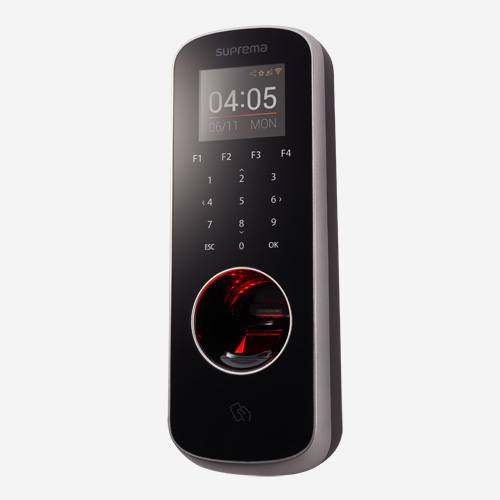

Suprema BioStation L2 is an essential fingerprint terminal that provides comprehensive access control and time attendance features based on Suprema’s next generation biometric technology and security platform. Designed for all type of time-attendance applications, BioStation L2 provides exceptional value by combining World’s best Suprema fingerprint algorithm, high performance and enhanced security features.
| Biométrique | Empreinte |
|---|---|
| Cartes et protocoles LF / HF | 125KHz EM, 13.56MHz Mifare/DESFire/DESFire EV1/FeliCa/NFC |
| Max. d’utilisateurs | 500 000 (1:1), 100 000(1:N) |
| Max. Templates | 1 000 000 (1:1), 200 000 (1:N) |
| Max. Logs | Texte: 1 000 000, Image: – |
| Wifi | Non |
| TCP/IP | Oui |
| RS-485 | 1ch Host ou Slave |
| RS-232 | Non |
| Wiegand | 1ch Input ou Output |
| Inputs | 2 |
| Relais | 1 |
| USB | Non |
| CPU | 1,2GHz Quad Core |
| Mémoire | 256MB RAM + 2GB Flash |
| LCD | 2″ Couleur |
| LED | Multicolore |
| Son | 16-bit Hi-Fi |
| Temp. Opérative | -20°C ~ 50°C |
| Tamper | Oui |
| Alimentation | 12VDC |
| PoE | Non |
| Dimensions (mm) | 71 x 201 x 44 |
| Certificats | CE, FCC, KC, RoHS, REACH, WEEE, BT SIG |
| Software | BioStar 1, BioStar 2 |
| Aplicaciones | Contrôle d’accès, Contrôle du temps |
| Tecnología Biométrica | Empreinte digitale |
