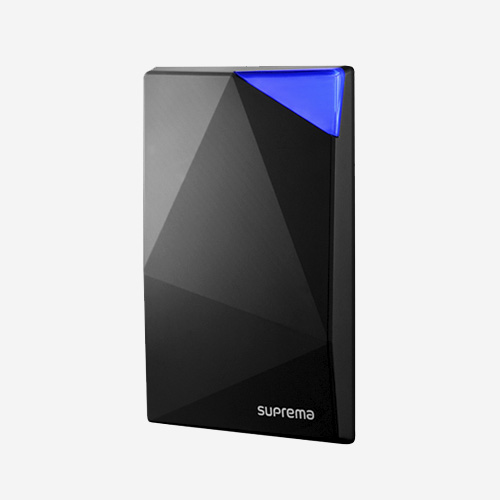

XPass S2

XPass S2 effortlessly combines key features of a traditional access control system.It has an ultra slim look and is a cornerstone in Suprema’s distributed IP access control system. The XPass S2 is designed to withstand a wider range of temperature and can read multiple smartcard technologies making it an ideal product for harsh weather environments.

Catégories : ,

Description

XPass S2 effortlessly combines key features of a traditional access control system.It has an ultra slim look and is a cornerstone in Suprema’s distributed IP access control system. The XPass S2 is designed to withstand a wider range of temperature and can read multiple smartcard technologies making it an ideal product for harsh weather environments.

Biométrique Non
Protection revenu / impact IP65
Cartes et protocoles 13.56MHz MIFARE/ DESFire/ DESFire EV1 FeliCa
Max. d’utilisateurs 50.000 (1:1), 50.000(1:N)
Max. Templates No (1:1), No (1:N)
Max. Logs Texte: 100.000, Image: –
Wifi Non
TCP/IP Oui
RS-485 1ch Host ou Slave
RS-232 Oui
Wiegand 1ch Input ou Output
Inputs 2
Relais 1
USB Non
CPU 533MHz DSP
Mémoire 16MB RAM + 16MB Flash
LCD Non
LED Multicolore
Son Buzzer multitone
Temp. Opérative -35°C ~ 65°C
Tamper Oui
Alimentation 12VDC
PoE Non
Dimensions W:80mm, H:120mm, D:11.4mm
Certificats CE, FCC, KC, RoHS
Software BioStar 1, BioStar 2
Aplicaciones Contrôle d’accès
Aplicaciones RFID Contrôle d’accès
Tecnología RFID 13,56 MHz
